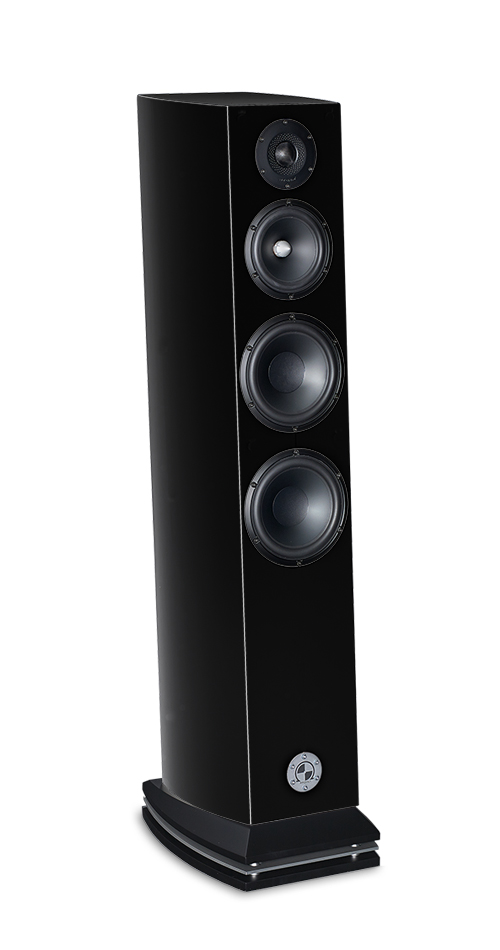

GT3-HD

ATOHM GT3-HD WENGNUT
ATOHM GT3-HD WENGNUT
ATOHM GT3-HD WENGNUT
ATOHM GT3-HD WENGNUT
ATOHM GT3-HD WENGNUT
ATOHM GT3-HD WENGNUT
ATOHM GT3-HD WENGNUT
ATOHM GT3-HD WENGNUT
ATOHM GT3-HD WENGNUT
ATOHM GT3-HD WENGNUT
ATOHM GT3-HD WENGNUT
Récompenses

GT3-HD

Specifications

Floorstanding speaker : 3 +1 ways bass reflex
Power handling : 300 Wrms
Peak power : 1000 W
Impedance : 6 ohms
Efficiency : 92 dB/2.83V/1M
Frequency response : 35 Hz - 30 kHz
Frequency roll off : 100-150-2500 Hz

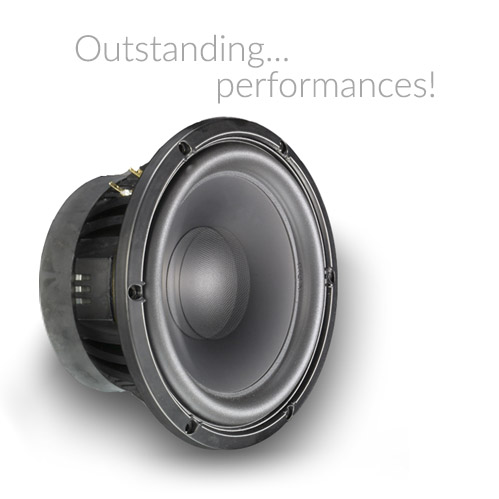

Midbass unit : LD180CR08 (*2) / MLD150CR04

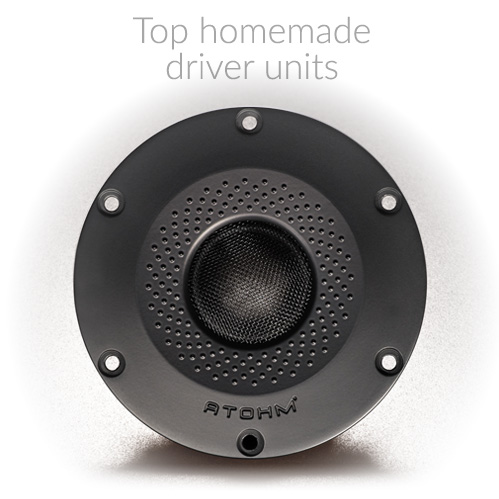

Tweeter : SD28ND04RD
Filtering slope : 1rst order with tweeter delay

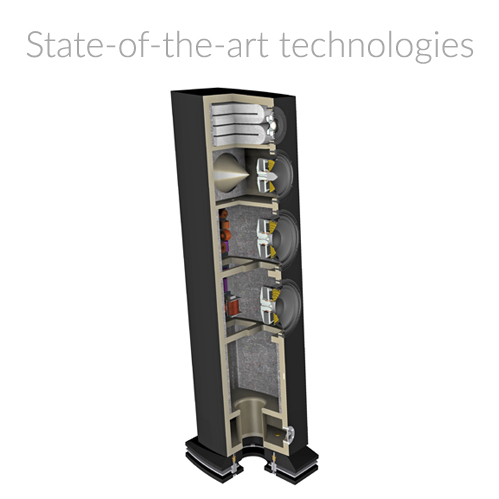

Cabinet : 22mm MDF with multilayers curved sides

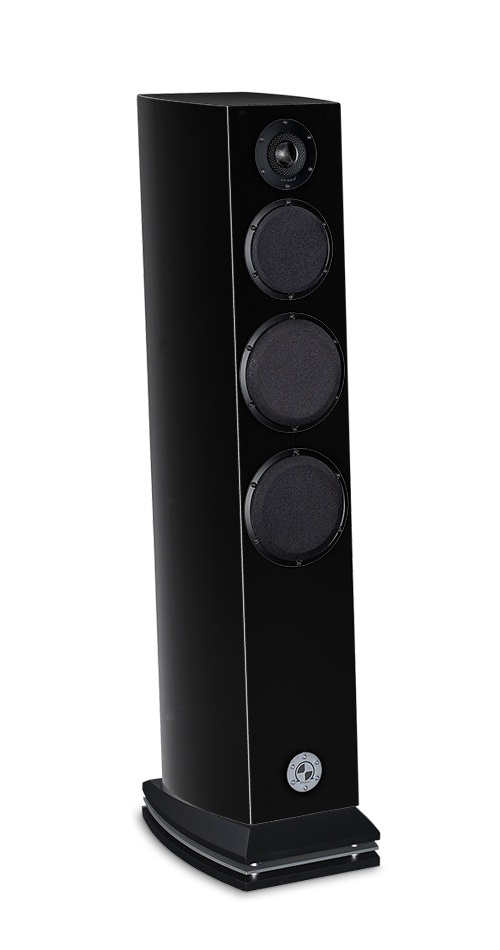

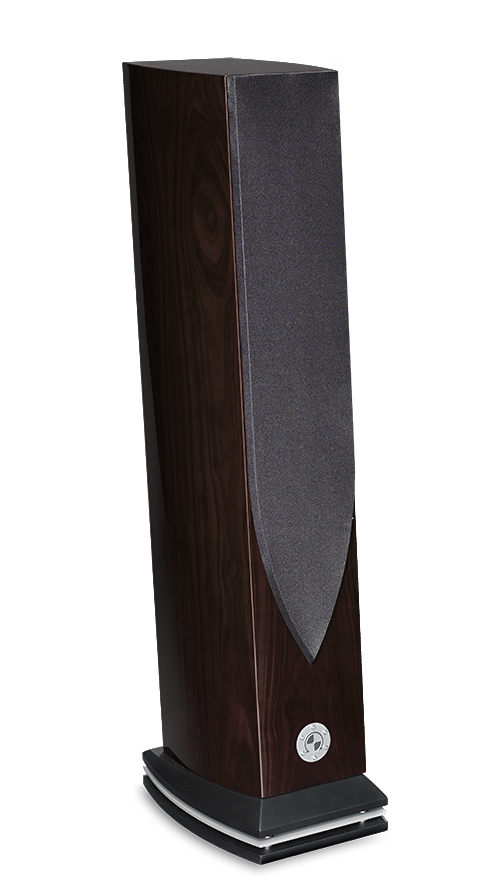

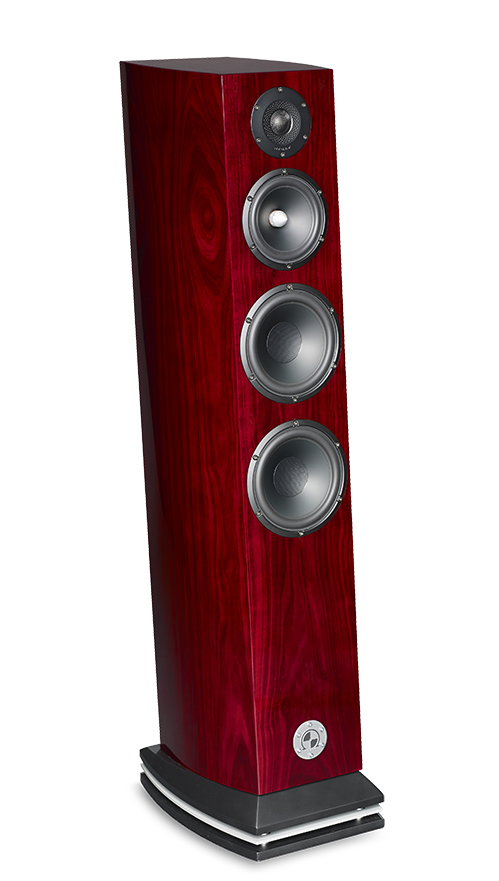

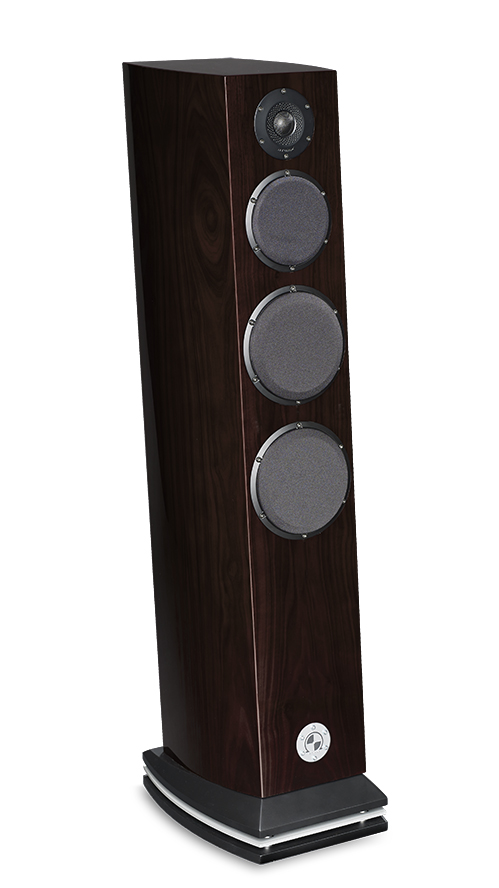

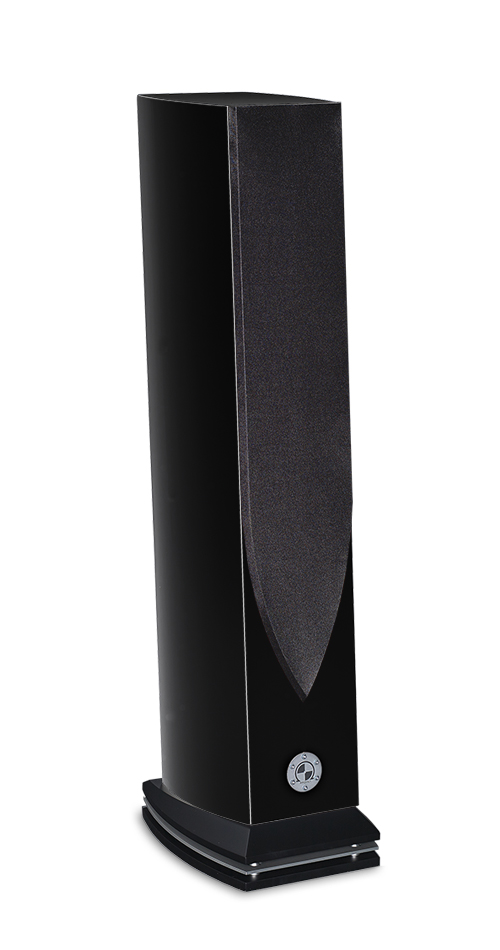

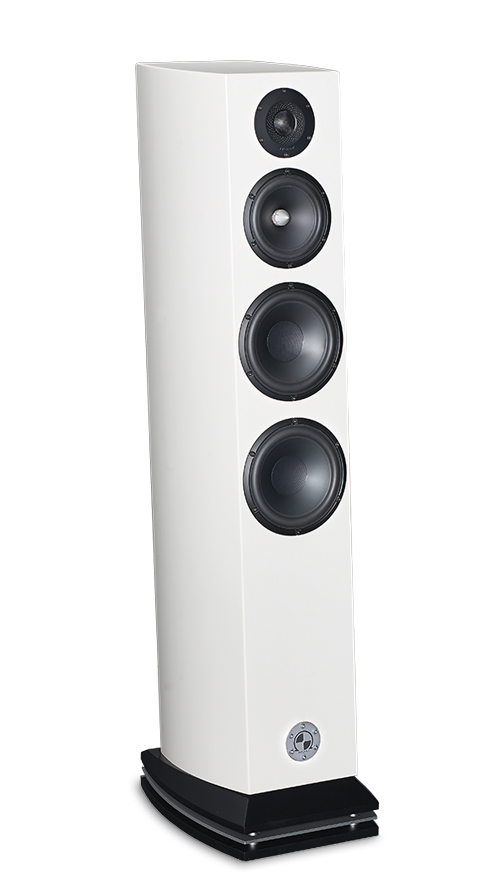

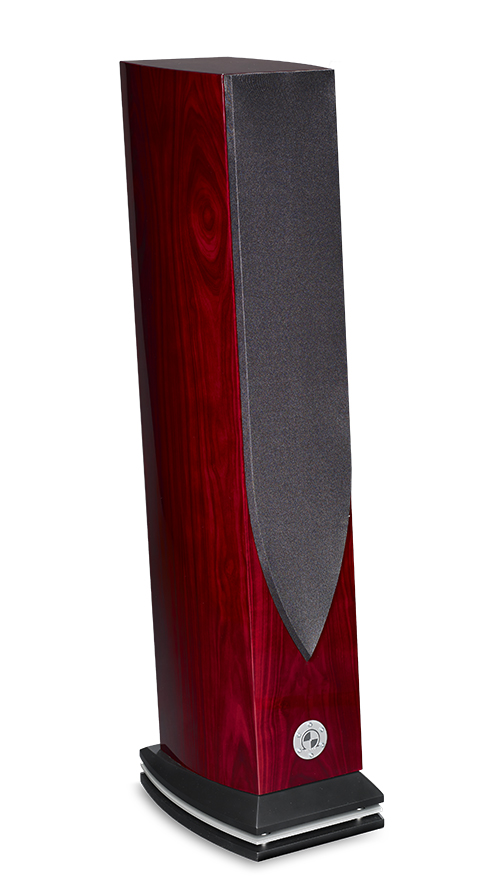

Finish : Piano gloss lacquer Black / White / Rosewood / Wengnut / RAL as option
Dimensions : 1190*240*435 (mm) 46.8*9.4*17.1 (inch)
Weight : 37.5 kg / 83 lbs

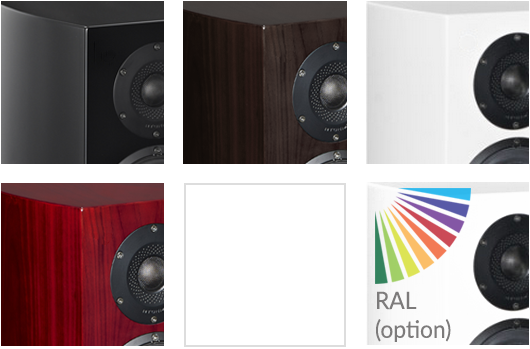

Finishes
