Kit Eurus SWB-X

Specifications

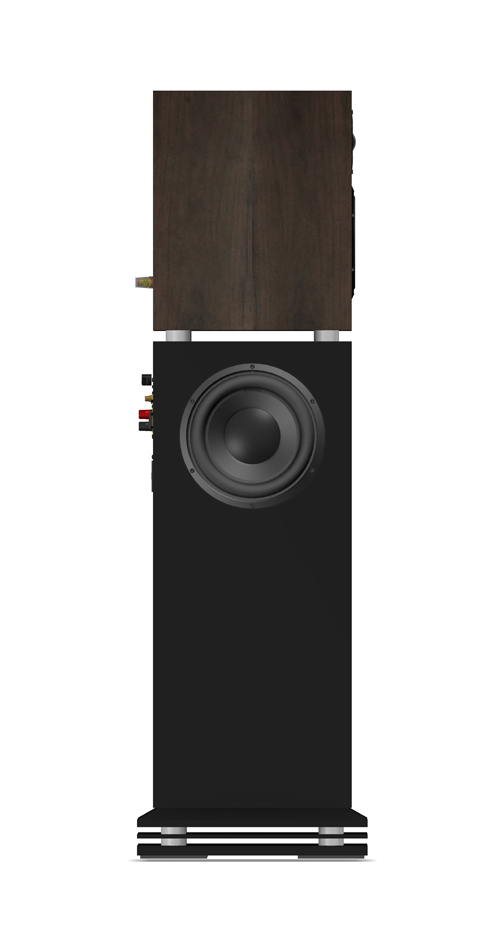

Active subwoofer : bass extension for EURUS 1.0 KIT (bass reflex 27L)

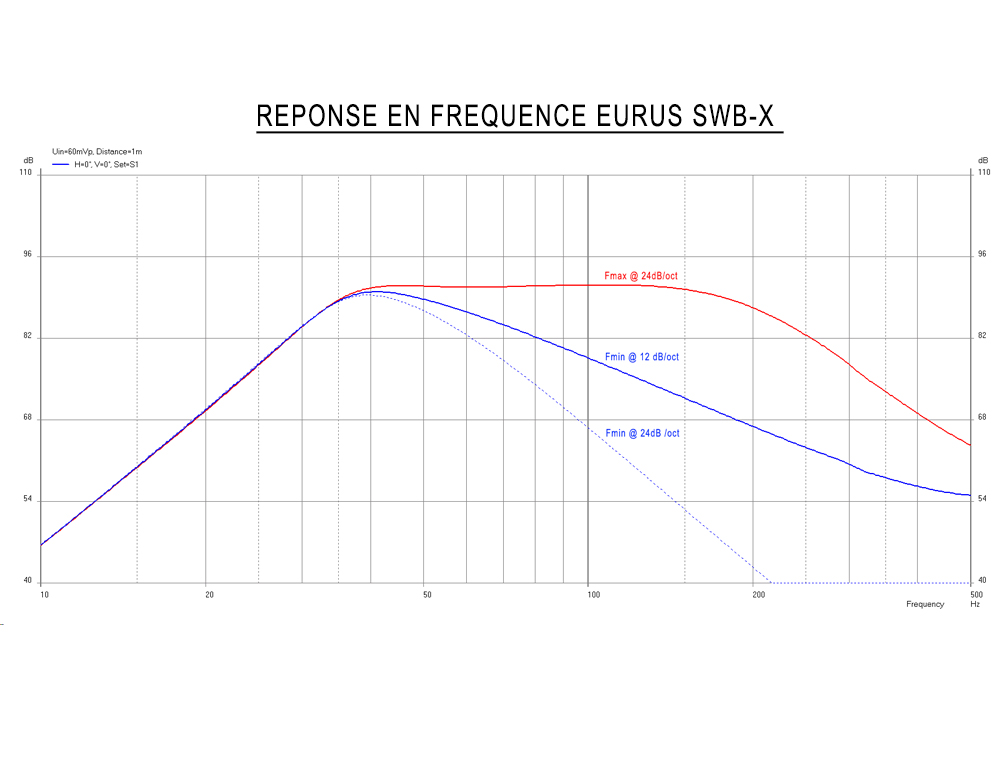

Frequency response : 32 Hz - 150 Hz (-3dB)

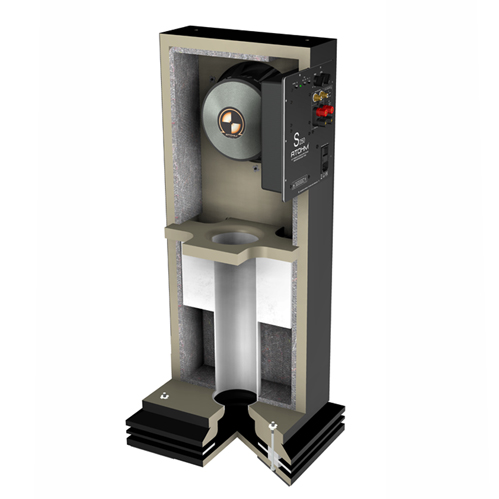

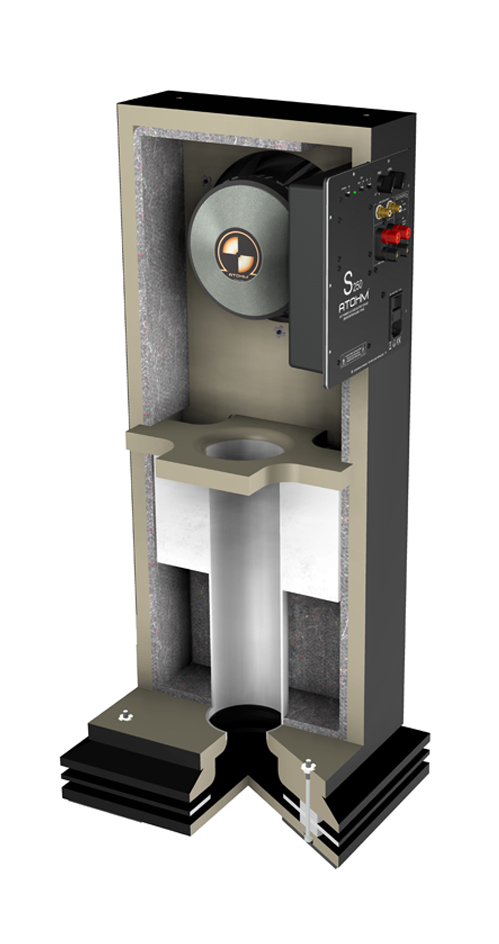

Ported tuning frequency : 35Hz ( with port firing on ground )
Max. SPL : 111 dB (rms) / 38 - 100 Hz @ 1M (demi espace ) THD<3.5%

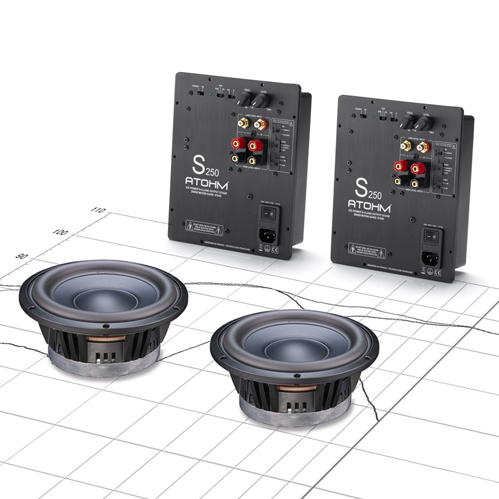

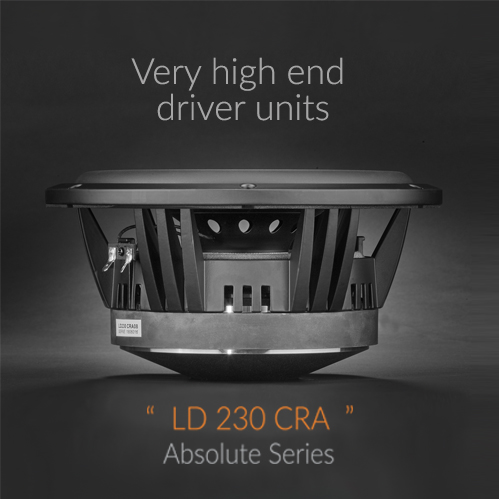

"Absolute series" woofer : LD230CRA04
Driver unit efficiency : 90 dB /2.83V / 1M

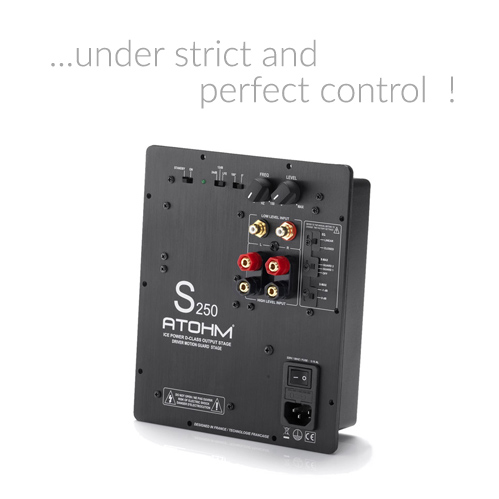

Amplifier module : Atohm S250 ( XG30 SETTING)
Amplifier module power : 220 Wrms
Peak power : 260W / U-guard (soft clipping)
Active excursion control : X-guard Technology (+/- 20 mm max.)
Low level input : 2x cinchs
High level input : 2x 4mm banana plugs
Low pass crossover : adjustable from 38 to 150 Hz
Filtering slope : adjustable 12dB-24dB-LFE
Phase control : 0-180°
Filtering slope : 12dB-24dB-LFE adjustable
Power consumption : 320Wmax
Supply voltage : 115 / 230 V
Dimensions : 820x265x315 (mm) incl. stand
